Magnetic particle brakes (also called powder brakes) are essential precision torque-control devices in industrial automation, widely used in winding, unwinding, tension control, and load testing. With the ability to deliver smooth, stable, stepless torque simply by adjusting excitation current, they have become a cornerstone of high-precision production lines. XW Machinery provides a comprehensive introduction to magnetic particle brakes, along with practical video references for different types and applications.
What Is a Magnetic Particle Brake?
A magnetic particle brake is a torque-transmission device that uses magnetic powder as its core working medium. Operating on electromagnetic principles, it generates controllable braking torque when energized and allows free rotation when de-energized—making it highly flexible for various industrial scenarios.
Key Advantages of Magnetic Particle Brakes
- Torque is linearly proportional to excitation current, enabling precise torque adjustment
- Torque remains independent of slip speed, ensuring stable output even in dynamic conditions
- Smooth, shock-free operation with low noise, protecting equipment and products
- Long service life and minimal maintenance, reducing operational costs
- Fast response and high repeatability, suitable for high-speed automation
How Does a Magnetic Particle Brake Work?
The working principle of a magnetic particle brake is based on the magnetic aggregation of magnetic powder, which can be divided into three key states:
1. De-energized State
When no DC power is supplied, the magnetic powder inside the brake is loose. Under the action of centrifugal force, the powder is thrown to the inner wall of the brake housing, allowing the input shaft to idle freely without any braking force.
2. Energized State
When DC power is applied to the coil, a magnetic field is generated. The magnetic powder is magnetized and forms dense particle chains, which firmly link the rotating input shaft to the stationary housing—generating controllable braking torque.
3. Torque Adjustment
The magnitude of the braking torque is directly controlled by the excitation current: increasing the current strengthens the magnetic field, resulting in higher torque; decreasing the current weakens the field, reducing torque. Importantly, torque remains stable even when the slip speed changes, ensuring consistent performance.
Common Types of Magnetic Particle Brakes
XW Machinery offers a full range of magnetic particle brakes to meet different industrial needs, with the two most common types listed below:

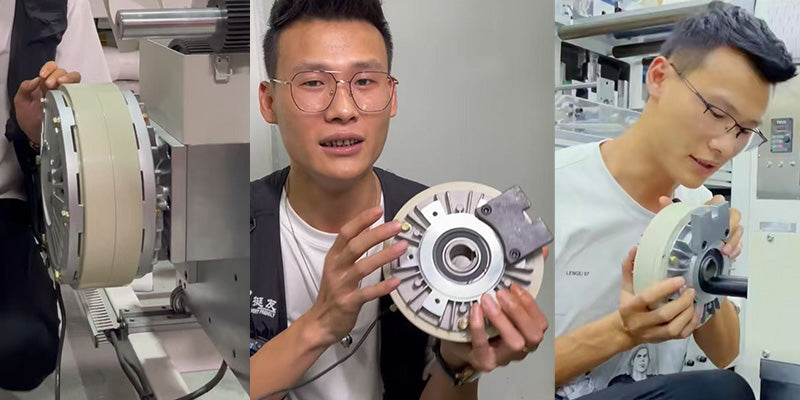

1. Single-Shaft Magnetic Particle Brake
The single-shaft magnetic particle brake features a solid input and output shaft, with a simple structure and easy installation. It is the standard model for most tension control and load testing applications, widely used in general industrial automation lines.
Video reference: Single-Shaft Magnetic Particle Brake Demonstration
2. Hollow-Shaft Magnetic Particle Brake
The hollow-shaft magnetic particle brake has a hollow center, which can accommodate through-shafts, wiring, or air piping. Its compact, space-saving design makes it the preferred choice for packaging, printing, and thin-film converting lines where installation space is limited.
Video reference: Hollow-Shaft Magnetic Particle Brake Installation & Operation
Typical Applications of Magnetic Particle Brakes
Thanks to their precise torque control and stable performance, magnetic particle brakes are widely used in various industries. Common applications include:
- Unwinding & winding tension control: printing, packaging, textiles, wire & cable, film, foil, and paper converting
- Load simulation & testing: testing motors, gearboxes, actuators, and other mechanical components
- Torque limiting & overload protection: preventing equipment damage from excessive torque
- Soft stopping & smooth starting: reducing mechanical impact and extending equipment life
- Damping & tension buffering in automated production lines
Application video:Magnetic Particle Brake in Industrial Applications
Why Choose XW Machinery Magnetic Particle Brakes?
As a professional supplier of magnetic particle brakes, XW Machinery is committed to providing high-quality, reliable solutions for industrial automation. Here’s why we stand out:
- Complete product series: single-shaft, hollow-shaft, high-speed, and high-torque models to cover all application scenarios
- Superior performance: stable torque output, low heat generation, and long-life magnetic powder for consistent operation
- Customization service: tailor-made solutions for special working conditions (e.g., high temperature, high speed)
- Comprehensive support: detailed specifications, professional application guides, and practical video references
Whether you need basic tension control for a small production line or high-performance loading systems for large-scale automation, XW-MJachinery’s magnetic particle brakes offer the precision, durability, and reliability you can trust.
