  Tension control and stable power transmission are the core guarantees for high-precision automated production in modern manufacturing industries. As a key precision control component for winding, unwinding, slitting and printing equipment, the hollow magnetic powder clutch has become a mainstream choice in industrial automation thanks to its unique through hollow shaft design, linear torque output and ultra-stable operation. With mature manufacturing experience and strict quality control systems, XW Machinery focuses on the R&D and production of high-performance hollow magnetic powder clutches, providing reliable standard and customized transmission solutions for global industrial equipment manufacturers.

  To help customers intuitively understand its structure and working process, we have launched a professional product display video: Hollow Magnetic Powder Clutch Video Introduction. The video visually demonstrates the internal structure, operating status and application characteristics of the product for your reference.

What Is a Hollow Magnetic Powder Clutch?

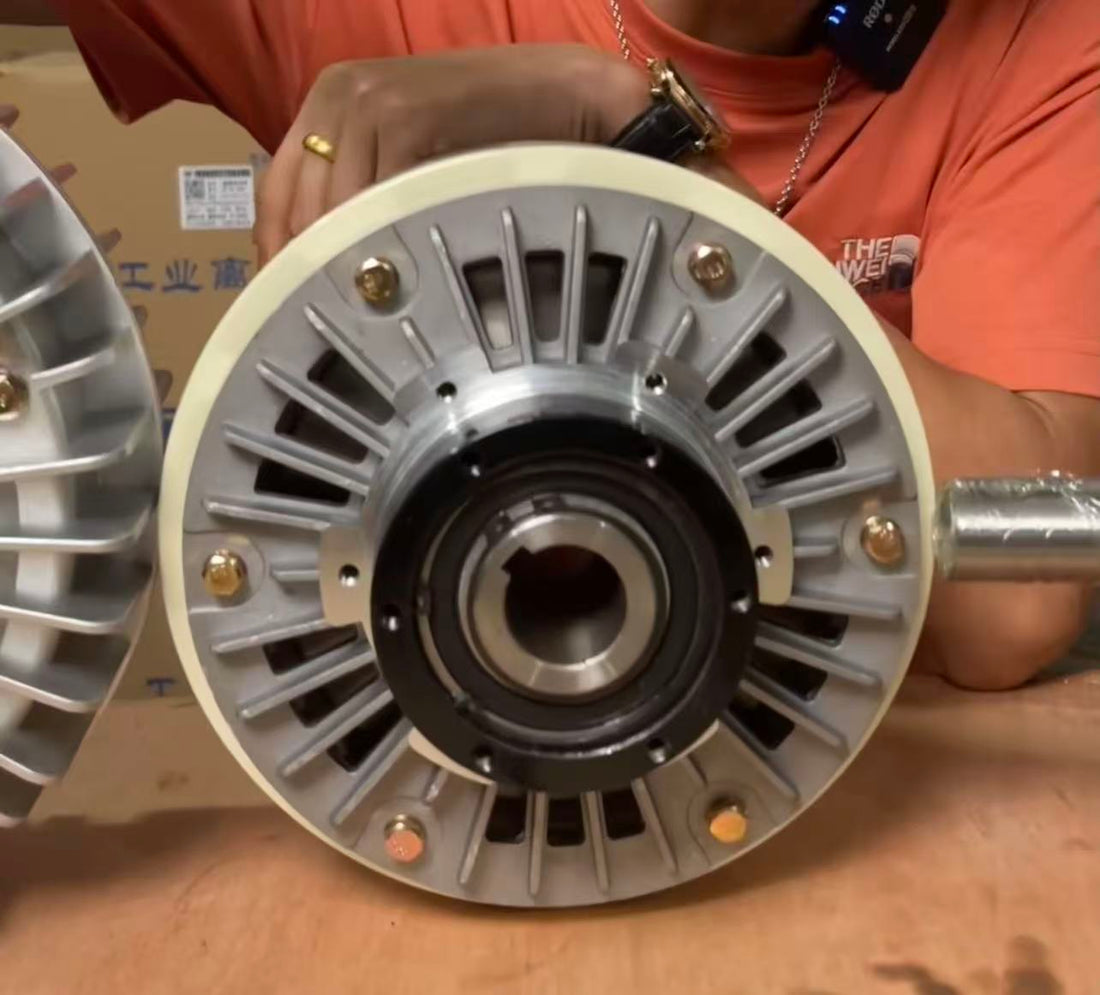

A hollow magnetic powder clutch is a high-precision electromagnetic power transmission device that uses ferromagnetic magnetic powder as the torque transmission medium. Different from traditional solid-shaft magnetic powder clutches, it adopts a full through hollow shaft structure, which allows equipment air shafts, transmission shafts or pipelines to pass through directly without additional structural modification. This innovative structural design greatly simplifies the mechanical layout of automated equipment and saves installation space effectively.

Composed of excitation coils, internal and external rotors, high-purity magnetic powder and a high-strength alloy shell, this clutch belongs to a multi-functional automatic control component. It can realize stepless adjustable torque transmission, buffer start-up, overload protection and precise tension control, and is widely used in various medium and low-speed industrial transmission scenarios.

Working Principle of Hollow Magnetic Powder Clutch

The operation of the hollow magnetic powder clutch is based on electromagnetic induction principles, with stable and controllable overall working logic, which can be divided into two core states:

Combination & Torque Transmission State: When the excitation coil is connected to DC24V safe working voltage, a uniform and stable magnetic field is formed inside the clutch. The magnetic powder filled in the gap between the active and driven rotors is instantly magnetized to form a dense chain magnetic structure. The torque is stably transmitted from the input end to the output end through the shear force and friction force of the magnetic powder chain. Most importantly, the excitation current is in an accurate linear proportional relationship with the output torque, realizing high-precision stepless torque adjustment within the rated range.

Separation & Idle Operation State: When the power is cut off, the internal magnetic field disappears instantly. Under the action of centrifugal force, the magnetic powder returns to a loose and free state, completely separating the active rotor from the driven rotor. At this time, there is no friction resistance or residual torque, realizing zero-delay power disconnection and no-load idle rotation, which effectively avoids mechanical wear and operational failure.



Core Advantages of XW Machinery Hollow Magnetic Powder Clutch

As a reliable industrial clutch and brake supplier, XW Machinery optimizes the structure and performance of hollow magnetic powder clutches for actual industrial pain points, with prominent core advantages:

1. Optimized Hollow Shaft Structure & Easy Installation

The through hollow shaft design adapts to various shaft penetration installation scenarios, perfectly matching air shafts of printing and winding machines. It effectively reduces the overall mechanical volume, simplifies assembly procedures, and improves equipment integration, which is impossible for traditional solid-shaft clutches.

2. Precise Linear Torque Control

The transmitted torque is strictly linear with the excitation current, supporting micro-adjustment of torque within the rated range. It maintains stable torque output even during long-term slip operation, ensuring consistent tension control for winding, unwinding, and slitting processes, and effectively improving product yield.

3. Fast Response & Stable Operation

Featuring ultra-fast electromagnetic response speed, the clutch realizes instant power combination and separation without impact, vibration, or noise. It supports frequent start-stop and switching operations, adapting to high-frequency working conditions of automated production lines.

4. Durable & Low Maintenance Cost

Made of high-strength alloy shell and high-purity magnetic powder, XW Machinery’s hollow magnetic powder clutch has excellent heat resistance and wear resistance. It adopts a natural heat dissipation structure with cooling fins, which efficiently dissipates heat generated by slip operation. With no vulnerable friction parts, it has a long service life and low later maintenance costs.

5. Multiple Protection & Wide Compatibility

Standard DC24V safe voltage design, with built-in over-rotation and overload protection functions. It covers multiple torque specifications from 6Nm to 200Nm, compatible with most medium and small industrial automation equipment.

Common Application Scenarios

Thanks to its superior performance, the hollow magnetic powder clutch is widely used in tension control and power transmission links of various industrial equipment, mainly including:

Printing and packaging machinery: film blowing machine, laminating machine, printing press, slitting machine

Textile and leather machinery: winding machine, warping machine, coating machine

Paper processing machinery: paper slitter, rewinder, corrugated paper equipment

Other automated equipment: precision tension control, overload protection, buffer start and speed regulation scenarios

Final Words

The hollow magnetic powder clutch has become an indispensable core component of modern automated machinery with its unique structural advantages, precise control performance, and stable operation. Choosing a high-quality hollow magnetic powder clutch directly determines the stability and production efficiency of the entire equipment.

Adhering to the concept of "Quality First, Service Oriented", XW Machinery provides standardized and customized hollow magnetic powder clutches and magnetic powder brakes. All products undergo strict quality testing before delivery, with complete specifications and reliable after-sales service. If you have product selection, technical consultation or customized demands, feel free to contact our professional team for timely support!
