Custom Air Shaft Sizing Guide: What Diameters & Lengths Can XW Machinery Produce?

Published for the Slitting, Printing & Packaging Industry

When sourcing air expanding shafts for slitting, rewinding, coating, and printing machinery, two core questions always top the buyer's list:

1. What core inch sizes are available?

2. What are the minimum and maximum customizable lengths?

  At XW Machinery, we specialize in fully bespoke air shaft manufacturing. From micro-sized shafts for lab equipment to heavy-duty jumbo rollers, our production capabilities cover a wide range of industrial requirements. Below is a comprehensive breakdown of our customizable dimensions, backed by real product samples and factory video verifications.

Part 1: Available Custom Diameters (1" to 12")

  XW Machinery supports custom air shaft outer diameters to match standard core inner diameters from 1 inch up to 12 inches—covering the most demanded specifications in the global converting industry.

🛠️ Mainstream & Specialized Size Ranges:

• Small & Medium Sizes (1”, 3”, 6”, 8”): Our strip-type inflatable air shafts in these sizes are mature, mass-produced models. They offer excellent concentricity for standard slitting and rewinding.

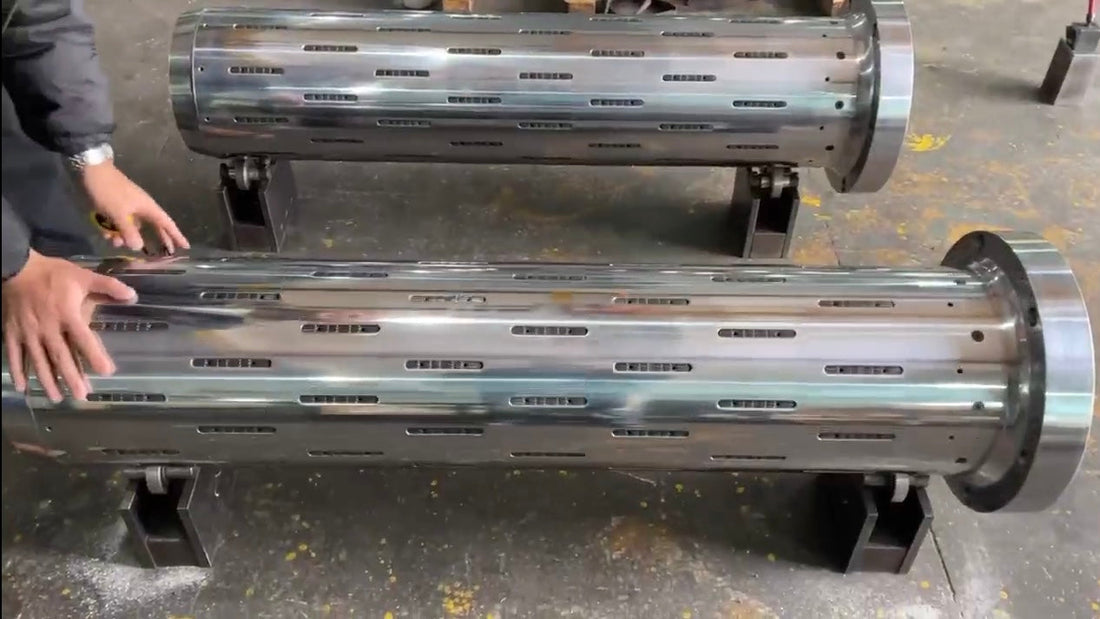

• Large-Scale Options (12”): The 12-inch lug-type air shaft is one of our flagship heavy-duty models, engineered specifically for thick paper, nonwovens, and jumbo film roll winding.

📺 Watch on Insgram: Check out our Inch-Diameter Introduction Video to see these diameters in production.

All diameter options are available in the two mainstream structural designs: Lug (Key) Type (for heavy-duty load winding) and Strip (Leaf) Type (for light-to-medium tension control and thin-core applications).

Part 2: Custom Length Specifications

We don't believe in "one size fits all." XW Machinery provides extreme flexibility in length customization to match your specific machine frame and web width.

Custom Attribute	Dimension	Ideal Applications & Features
Minimum Length	13 cm (≈5.12 inches)	Small lab machines, narrow web label printing, and mini-slitters with strict space constraints.
Maximum Length	No Upper Limit (Up to 6m+)	Wide-format film lines, textile machinery, and jumbo paper roll production.

🔍 Length Highlights:

• Ultra-Short Compact Shafts: You can view the physical product photo of our shortest 6-inch / 8-inch compact air shaft, designed for high precision in limited spaces.

• Industrial Ultra-Long Shafts: Whether you need a mini shaft under 20 cm or an over-6-meter industrial giant, our engineering team can precision-machine it directly from your technical drawings.

📺 Watch on Tiktok: See our length customization capabilities in this Reference Length Video.

Part 3: Why Choose XW Machinery for Custom Air Shafts?

Beyond standard diameter and length adjustments, XW Machinery offers deep customization to ensure seamless integration with your existing equipment:

• Material Optimization: Choose between high-tensile carbon steel (for maximum load capacity) or lightweight aluminum alloy (for easy manual handling).

• Tailored Engineering: Custom air valve positioning, cantilever designs, and specialized journal/flange ends are fully customizable based on your machine layout.

• 100% Quality Assurance: Every shaft undergoes strict pressure and dynamic balance testing before leaving our factory. We provide real finished product photos and testing videos for your approval prior to shipment.

Conclusion & Quick Reference

For global procurement managers looking for reliable, custom-built air expanding shafts, here is a quick summary of XW Machinery’s capabilities:

• Diameter Range: $1 \text{ inch} \sim 12 \text{ inches}$ (Standard 3", 6", 8", and 12" components are kept in stock for fast delivery).

• Length Range: Min. 13 cm to Unlimited maximum length tailored to your exact machine width.

📩 Ready for a Quote?

If you have a unique, non-standard inch requirement or specific structural drawings, the XW engineering team is ready to help. [Contact XW Machinery Today] with your core ID and machine width drawings for an exclusive, competitive quotation within 24 hours.
