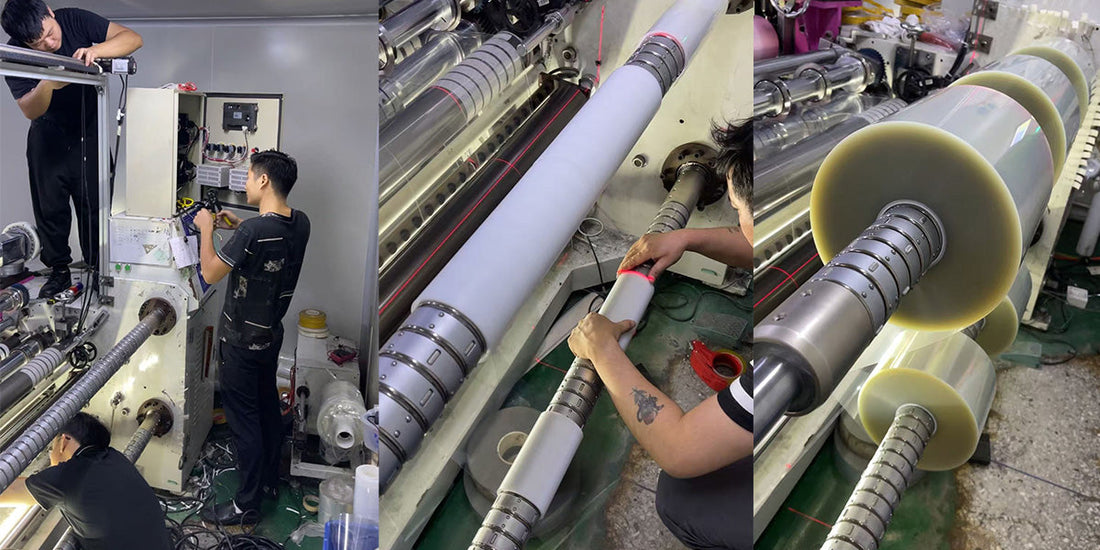

How Does a Differential Shaft Work?

  If you work in the slitting, rewinding, or converting industry, you’ve likely heard of a differential shaft—a core component that keeps your production smooth, efficient, and precise. In this blog, we’ll break down exactly how it works, why it matters, and where you can find a high-quality version for your operations.

What Is a Differential Shaft?

  A differential shaft, also known as a slip shaft, is a specialized winding shaft designed to handle multiple rolls of material (like paper, film, foil, or fabric) simultaneously. Unlike a standard fixed shaft that spins all rolls at the same speed, a differential shaft allows each roll to rotate independently while maintaining consistent tension. This is critical for slitting lines, where uneven tension can cause wrinkling, tearing, or inconsistent roll quality.

How Does It Work?

  The magic of a differential shaft lies in its internal mechanical design—simple yet highly effective. Here’s a step-by-step breakdown:

1. Central Core & Independent Segments: The shaft features a central drive core    connected to the machine’s motor. Surrounding this core are multiple individual segments (usually 4–8) that hold the material rolls.

2. Slip Mechanism: Each segment has a built-in friction or pneumatic slip mechanism.       When the main core rotates, it transfers torque to the segments—but the slip mechanism lets each segment "slip" slightly if needed.

3. Tension Equalization: As material is wound onto the rolls, roll diameters naturally vary  (even by a small margin). The slip mechanism adjusts the speed of each segment automatically: larger rolls spin slower, smaller rolls spin faster. This keeps constant tension across all rolls.

4. Precision & Stability: The independent rotation eliminates tension differences, ensuring every roll is wound tightly, evenly, and without defects. This also reduces waste and boosts production speed.

Key Advantages

· Consistent Tension: Prevents wrinkling, stretching, or material damage.

· High Precision: Ideal for thin, delicate materials that demand accuracy.

· Efficient Production: Handles multiple rolls at once, cutting downtime.

· Durability: Built for heavy-duty industrial use, with minimal maintenance.

See It in Action

  Want to visualize how a differential shaft operates? Check out this short video: https://youtube.com/shorts/p2058yzXAWY?si=m_2HZ4k0khUQMmTj. It clearly demonstrates the independent rotation of segments and how the shaft maintains perfect tension during slitting and rewinding.

Get a Reliable Differential Shaft for Your Business

  If you’re upgrading your slitting line or replacing an old shaft, quality matters. A well-engineered differential shaft from XW Machinery delivers consistent performance for years. Explore premium model here: differential shaft. Built with high-grade materials and precise craftsmanship, it’s designed for smooth operation and minimal downtime.

Final Thoughts

  A differential shaft may look simple, but it’s the unsung hero of modern converting operations. By enabling independent roll rotation and constant tension, it ensures high-quality output, reduces waste, and keeps production running efficiently. Whether you’re working with paper, film, or foil, a reliable differential shaft is non-negotiable for precision slitting and rewinding.
