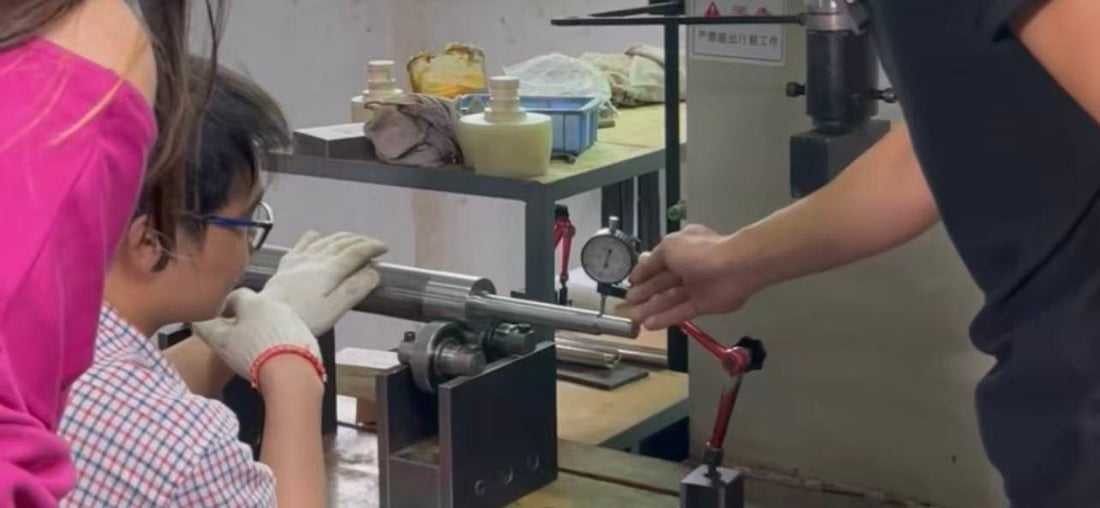

XW Machinery air expanding shaft concentricity test showing runout accuracy inspection before shipment

How Accurate Are XW Machinery Air Shafts? Understanding the Relationship Between Precision and Quality

In the converting, slitting, printing, coating, and packaging industries, many buyers focus on shaft diameter, load capacity, and delivery time when purchasing an air shaft. However, one critical factor is often overlooked: shaft precision.

The concentricity and runout accuracy of an air shaft directly affect machine stability, web tension consistency, product quality, and the service life of bearings and machine components.

Why Air Shaft Precision Matters

An air expanding shaft rotates at high speed during unwinding, rewinding, and slitting operations. If the shaft has excessive runout, it can cause:

  • Uneven web tension
  • Roll vibration and shaking
  • Wrinkling or telescoping rolls
  • Poor slitting accuracy
  • Premature bearing wear
  • Increased machine downtime

For high-speed converting lines, even a small deviation can significantly impact production quality.

This is why professional manufacturers always perform strict concentricity testing before shipment.

XW Machinery Air Shaft Precision Standard

At XW Machinery, every air shaft undergoes concentricity inspection before delivery.

According to our internal quality control standard:

1-Meter Air Expanding Shaft

  • Concentricity runout: less than 0.1 mm
  • Actual measured accuracy: 0.01–0.09 mm
  • Any shaft exceeding 0.1 mm will be reworked or scrapped

This quality requirement ensures stable rotation performance and reliable operation in demanding industrial environments.

Video Reference

Watch the actual concentricity test here: Air Shaft Concentricity Test Video

The video demonstrates the precision inspection process performed before shipment.

Differential Shaft Precision Requires Even Higher Standards

Compared with standard air shafts, differential shafts require even tighter manufacturing tolerances because they are designed for narrow-web slitting and independent tension compensation.

At XW Machinery:

1.5-Meter Differential Shaft

  • Concentricity runout: ≤ 0.02 mm

Such high precision helps ensure:

  • Stable differential slip performance
  • Uniform tension distribution
  • Improved slitting quality
  • Better roll winding consistency
  • Reduced material waste

For lithium battery film, optical film, flexible packaging, and high-value materials, this level of accuracy is particularly important.

Precision Reflects Manufacturing Quality

Many buyers ask:

"Does higher precision really mean better quality?"

The answer is yes.

Achieving low runout requires excellence in every manufacturing step:

High-Precision Machining

The shaft body must be processed using precision CNC equipment to maintain dimensional consistency.

Strict Material Selection

Premium alloy steel and high-strength aluminum alloys reduce deformation during machining and long-term operation.

Dynamic Inspection

Every finished shaft must pass concentricity and rotational testing before shipment.

Quality Control System

A manufacturer willing to reject or rework products that exceed tolerance demonstrates a true commitment to quality.

At XW Machinery, shafts that fail to meet our runout standard are never shipped to customers.

How Precision Benefits End Users

When using a high-precision air shaft or differential shaft, customers can expect:

  • More stable machine operation
  • Better tension control
  • Higher slitting accuracy
  • Longer bearing life
  • Reduced maintenance costs
  • Improved finished roll quality

Over time, these advantages help lower production costs and increase overall manufacturing efficiency.

Learn More About XW Machinery Shafts

Whether you need a standard Air Expanding Shaft, a heavy-duty Lug Type Air Shaft,  a high-precision Differential Shaft, or Slitting Machine Solutions, XW Machinery provides customized solutions for converting and web processing applications worldwide.

Conclusion

Precision is not just a number on a test report—it is a reflection of manufacturing quality.

XW Machinery's quality standards ensure:

  • Air Shaft (1 m): Runout 0.01–0.09 mm
  • Differential Shaft (1.5 m): Runout ≤ 0.02 mm

By maintaining strict inspection procedures and rejecting products that exceed tolerance limits, XW Machinery delivers shafts that help customers achieve stable production, consistent quality, and long-term reliability.
